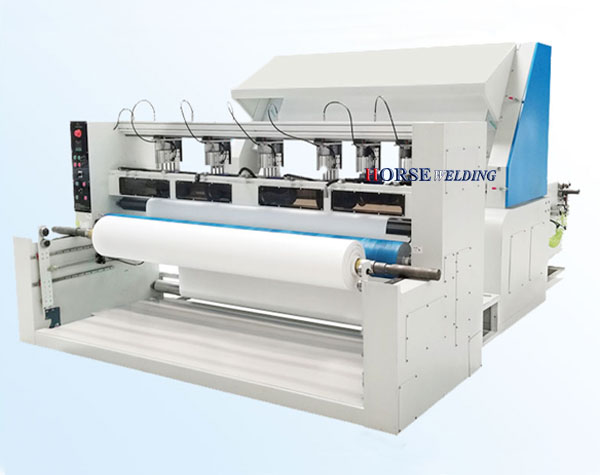

Filter Cloth Roll Slitting Machine
This filter fabric slitting machine is divided into four parts: feeding, fabric inspection, cutting, and winding. It is an ideal upstream equipment for automated sewing production lines of cylindrical filter bags. It is designed specifically for inspecting and cutting large fabrics, and can cut fabrics into the required width according to actual needs. How many correction devices are used to ensure the accuracy of fabric cutting, and the use of high-power motors can adapt to high-speed operations of different fabrics.
Work with needle punched non-woven felt made of materials such as PE, PPS, DT, PTFE, glass fiber, and composite fibers, with a thickness of 1-5mm and a weight of 350-1050g/㎡
Specifications:
1. Design speed: 5-80m/min
2. Cutting width: ＞ 50mm
3. Product door width: 2500mm; Design roller surface: 2600mm
4. Winding diameter: Ф 1000, weight>350kg, paper core hole Ф 76mm (3 inches)
5. Power supply: three-phase 380V 50HZ Control power supply: 220V
Video of Machine:
Main Features :
1. The surface is rolled up and rolled up, the fabric is tightly and neatly rolled, and the operation is simple.
2. The advanced quality inspection function can detect whether the fabric is exposed or uneven in weight at any time.
3. Intelligent feeding can ensure the tension of the fabric according to the feeding speed.
